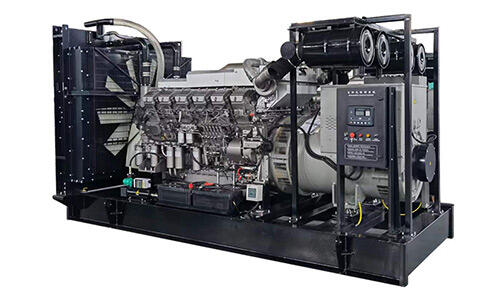

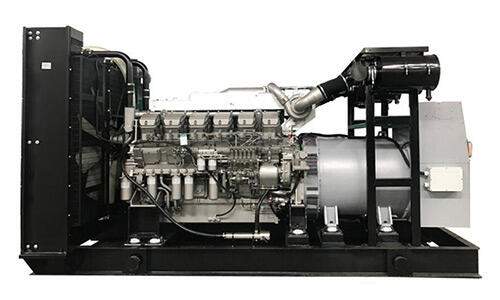

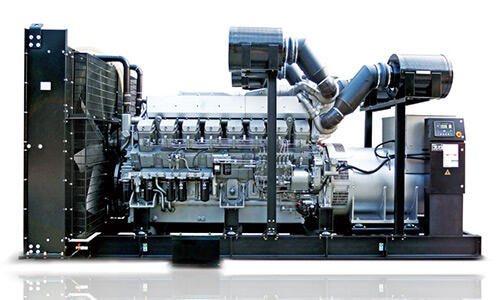

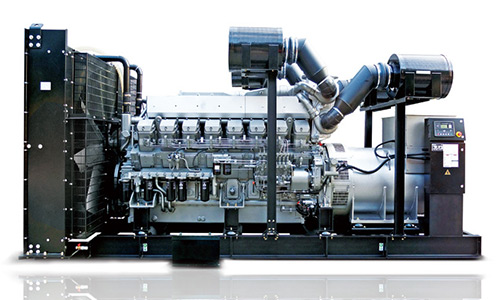

DOOSAN located in Korea first started producing diesel engines in 1958.The products have a high cost performance with the power range from 10VA-1200kVA, meet the domestic and international standards like GB/T2820, GB1105, YD/T502, SO8525-3, ISO3046, ISO8525 and US EPA and CARB emission standards.DOOSAN gen-set system can provide multiple protection functions for the oil temperature、water temperature、oil pressure、speed and overload of the unit, mainly used in national defense、aviation、vehicles、ships、construction machinery and generator sets.DOOSAN diesel engines are recognized by the world for the small size、compact weight、strong sudden load capacity、low noise and reliability.
| 50HZ | ||||||
| Genset Model | Standby Power | Prime Power | Engine Model | Dimension(MM)L*W*H | ||
| KVA | KW | KVA | KW | |||
| KC-H8 | 8 | 6 | 7 | 5 | SP103NA | 1500*750*1030 |
| KC-H15 | 15 | 12 | 14 | 11 | SP173NA | 1500*750*1030 |
| KC-H20 | 20 | 15 | 18 | 14 | SP224NA | 1500*750*1030 |
| KC-H28 | 28 | 22 | 25 | 20 | SP244TA | 1500*750*1030 |
| KC-H41 | 41 | 33 | 38 | 30 | SP244CA | 1700*750*1150 |
| KC-H55 | 55 | 44 | 50 | 40 | SP344CA | 1850*800*1180 |
| KC-H70 | 70 | 55 | 63 | 50 | SP344CB | 1850*800*1180 |
| KC-H90 | 90 | 72 | 81 | 65 | SP344CC | 1850*800*1180 |
| KC-H91 | 91 | 73 | 83 | 66 | D1146 | 1900*800*1250 |
| KC-H131 | 131 | 105 | 119 | 95 | D1146T | 2250*880*1300 |
| KC-H165 | 165 | 132 | 150 | 120 | DP086TA | 2650*1000*1800 |
| KC-H186 | 186 | 149 | 169 | 135 | P086TI-1 | 2650*1000*1800 |
| KC-H220A | 220 | 176 | 200 | 160 | P086TI | 2650*1000*1800 |
| KC-H220B | 220 | 176 | 200 | 160 | DP086LA | 2650*1000*1800 |
| KC-H303 | 303 | 242 | 275 | 220 | P126TI | 3100*1100*2000 |
| KC-H330 | 330 | 264 | 300 | 240 | P126TI-II | 3100*1100*2000 |
| KC-H415 | 415 | 330 | 375 | 300 | DP126LB | 3100*1100*2000 |
| KC-H440 | 440 | 352 | 400 | 320 | P158LE | 3400*1350*2200 |
| KC-H510A | 510 | 407 | 463 | 370 | P158FE | 3400*1350*2200 |
| KC-H510B | 510 | 407 | 463 | 370 | DP158LC | 3400*1350*2200 |
| KC-H584 | 584 | 468 | 531 | 425 | DP158LD | 3400*1350*2200 |
| KC-H633 | 633 | 506 | 575 | 460 | DP180LA | 3700*1700*2200 |
| KC-H688 | 688 | 550 | 625 | 500 | DP180LB | 3700*1700*2200 |
| KC-H756 | 756 | 605 | 688 | 550 | P222FE | 3700*1700*2200 |
| KC-H825 | 825 | 660 | 750 | 600 | DP222LC | 3700*1700*2200 |
| KC-H840 | 840 | 671 | 763 | 610 | DP222CA | 3700*1700*2200 |
| KC-H895 | 895 | 715 | 813 | 650 | DP222CB-2 | 3700*1700*2200 |
| KC-H1004 | 1004 | 803 | 913 | 730 | DP222CC | 3700*1700*2200 |
| 60HZ | ||||||
| Genset Model | Standby Power | Prime Power | Engine Model | Dimension(MM)L*W*H | ||
| KVA | KW | KVA | KW | |||
| KC-HD10 | 10 | 8 | 9 | 7 | SP103NE | 1500*750*1050 |
| KC-HD18 | 18 | 14 | 16 | 13 | SP173NC | 1500*750*1050 |
| KC-HD26 | 26 | 21 | 24 | 19 | SP224NC | 1500*750*1050 |
| KC-HD33 | 33 | 26 | 30 | 24 | SP244TC | 1500*750*1050 |
| KC-HD50 | 50 | 40 | 44 | 35 | SP244CA | 1700*750*1150 |
| KC-HD70 | 70 | 55 | 63 | 50 | SP344CA | 1850*800*1180 |
| KC-HD72 | 72 | 57 | 65 | 52 | SP344CA | 1850*800*1180 |
| KC-HD80 | 80 | 64 | 73 | 58 | SP344CB | 1850*800*1180 |
| KC-HD102 | 102 | 81 | 93 | 74 | SP344CC | 1850*800*1180 |
| KC-HD110 | 110 | 88 | 100 | 80 | D1146 | 1900*800*1250 |
| KC-HD150 | 150 | 120 | 136 | 109 | D1146T | 2250*880*1300 |
| KC-HD206 | 206 | 165 | 188 | 150 | DP086TA | 2650*1000*1800 |
| KC-HD210 | 210 | 167 | 190 | 152 | P086TI-1 | 2650*1000*1800 |
| KC-HD241 | 241 | 193 | 219 | 175 | P086TI | 2650*1000*1800 |
| KC-HD345 | 345 | 275 | 313 | 250 | P126TI | 3100*1100*2000 |
| KC-HD380 | 380 | 303 | 345 | 275 | P126TI-II | 3100*1100*2000 |
| KC-HD454 | 454 | 363 | 413 | 330 | DP126LB | 3100*1100*2000 |
| KC-HD500 | 500 | 400 | 450 | 360 | P158LE | 3400*1350*2200 |
| KC-HD536 | 536 | 429 | 488 | 390 | P158FE | 3400*1350*2200 |
| KC-HD580 | 580 | 462 | 525 | 420 | DP158LC | 3400*1350*2200 |
| KC-HD605 | 605 | 484 | 550 | 440 | DP158LD | 3400*1350*2200 |
| KC-HD693 | 693 | 554 | 630 | 504 | DP180LA | 3700*1700*2200 |
| KC-HD745 | 745 | 595 | 675 | 540 | DP180LB | 3700*1700*2200 |
| KC-HD825 | 825 | 660 | 750 | 600 | P222FE | 3700*1700*2200 |
| KC-HD880 | 880 | 704 | 800 | 640 | DP222LB | 3700*1700*2200 |
| KC-HD935 | 935 | 748 | 850 | 680 | DP222LC | 4400*2000*2250 |
| KC-HD950 | 950 | 760 | 863 | 690 | DP222CA | 3700*1700*2200 |
| KC-HD950 | 950 | 760 | 863 | 690 | DP222CA-2 | 3700*1700*2200 |
| KC-HD1018 | 1018 | 814 | 925 | 740 | DP222CB-2 | 3700*1700*2200 |
| KC-HD1100 | 1100 | 880 | 1000 | 800 | DP222CC | 4400*2000*2250 |
Are you trading company or manufacturer ?
We are factory.
What is your power range of your diesel generator?
We can provide power from 8KVA-4000KVA and comprehensive power solutions for you
How long is your delivery time?
4-6 weeks.
What's your MOQ?
1 set.
What is your terms of payment ?
T/T 30% in advance and TT 70% balance paid before shipment.
What is your warranty period?
Our warranty period is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.
Do you offer OEM service?
Yes.
How could I trust you?
Diesel Service & Supply stands behind the quality of all the generators and industrial power equipment we sell. If you are not convinced by the pictures, videos, check-in reports, load tests, customer experiences and sales associates’ knowledge about the generator you are interested in, then we invite you to come visit our expansive yard and shop facility to witness a load test and see the professional operation we have going on here.
After i receive the genset what should i do ?
After you got the generator, please read the operation manual carefully.
