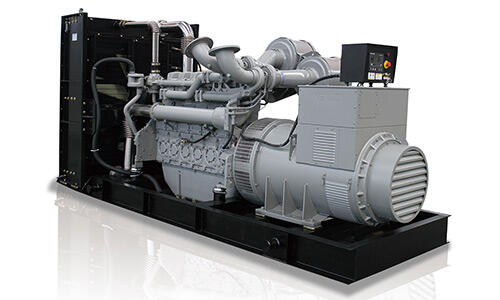

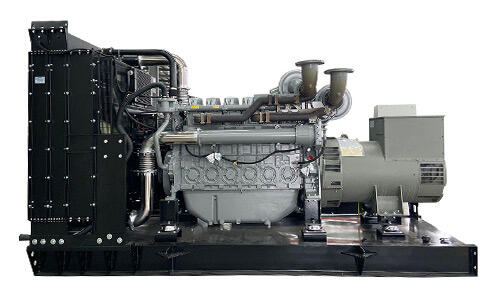

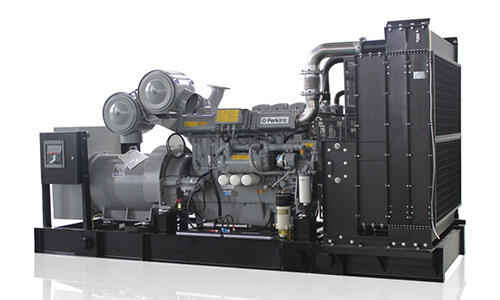

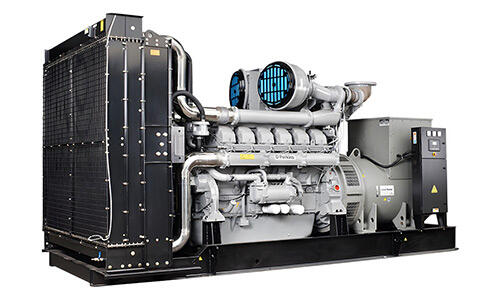

● Adopting Perkins engines, featuring strong transient loading capacity, good maintainability and long service life;
● Perkins engine with complete product series and wide power coverage has remarkable stability, reliability, durability and service life, can provide you with low operating costs and fast “return” cycle, with wide applications in communications, Industry, outdoor engineering, mining, risk resistance, military and other fields. The 400, 1100, 1300, 2000 and 4000 series diesel engines are produced by Perkins and its production plants in accordance with its global unified quality standards. Perkins’ worldwide service network provides customers with dependable service guarantee.
| 50HZ | ||||||
| Genset Model | Standby Power | Prime Power | Engine Model | Dimension(MM)L*W*H | ||
| KVA | KW | KVA | KW | |||
| KC-P10 | 10 | 8 | 9 | 7 | 403A-11 G1 | 1350*500*1090 |
| KC-P14A | 14 | 11 | 13 | 10 | 403A-15G1 | 1430*500*1150 |
| KC-P14B | 14 | 11 | 13 | 10 | 403D-15G | 1435*500*1150 |
| KC-P16 | 16 | 13 | 15 | 12 | 403A-15G2 | 1435*500*1150 |
| KC-P22 | 22 | 18 | 20 | 16 | 404A-22G1 | 1610*560*1195 |
| KC-P30 | 30 | 24 | 27 | 22 | 404D-22TG | 1680*560*1195 |
| KC-P32 | 32 | 26 | 30 | 24 | 1103A-33G | 1840*700*1270 |
| KC-P50 | 50 | 40 | 45 | 36 | 1103A-33TG1 | 1960*700*1350 |
| KC-P66 | 66 | 53 | 60 | 48 | 1103A-33TG2 | 2050*700*1350 |
| KC-P72 | 72 | 57 | 65 | 52 | 1104A-44TG1 | 2200*700*1350 |
| KC-P88A | 88 | 70 | 80 | 64 | 1104A-44TG2 | 2200*700*1350 |
| KC-P88B | 88 | 70 | 80 | 64 | 1104C-44TAG1 | 2280*700*1350 |
| KC-P110 | 110 | 88 | 100 | 80 | 1104C-44TAG2 | 2280*700*1350 |
| KC-P150 | 150 | 120 | 135 | 108 | 1106A-70TG1 | 2565*850*1425 |
| KC-P165 | 165 | 132 | 150 | 120 | 1106A-70TAG2 | 2750*850*1350 |
| KC-P200 | 200 | 160 | 180 | 144 | 1106A-70TAG3 | 2850*850*1350 |
| KC-P220 | 220 | 176 | 200 | 160 | 1106A-70TAG4 | 2850*1045*1825 |
| KC-P254 | 254 | 203 | 231 | 185 | 1506A-E88TAG2 | 2980*1055*1695 |
| KC-P283 | 283 | 226 | 257 | 206 | 1506A-E88TAG3 | 2980*1055*1695 |
| KC-P338 | 338 | 270 | 307 | 246 | 1506A-E88TAG5 | 3080*1090*1700 |
| KC-P400 | 400 | 320 | 350 | 280 | 2206C-E13TAG2 | 3460*1150*2030 |
| KC-P450 | 450 | 360 | 400 | 320 | 2206C-E13TAG3 | 3460*1150*2030 |
| KC-P500 | 500 | 400 | 455 | 364 | 2506C-E15TAG1 | 3780*1270*2020 |
| KC-P550 | 550 | 440 | 500 | 400 | 2506C-E 15TAG2 | 3780*1270*2020 |
| KC-P650 | 650 | 520 | 591 | 473 | 2806C-E 18TAG1A | 3780*1536*2180 |
| KC-P700 | 700 | 560 | 650 | 520 | 2806A-E18TAG2 | 3780*1536*2180 |
| KC-P820 | 820 | 656 | 746 | 597 | 4006-23TAG2A | 4250*1690*2150 |
| KC-P880 | 880 | 704 | 800 | 640 | 4006-23TAG3A | 4250*1690*2150 |
| KC-P1000 | 1000 | 800 | 910 | 728 | 4008TAG1A | 4735*2261*2256 |
| KC-P1125 | 1125 | 900 | 1022 | 818 | 4008TAG2A | 4735*2261*2256 |
| KC-P1250 | 1250 | 1000 | 1125 | 900 | 4008-30TAG3 | 4735*2261*2256 |
| KC-P1375 | 1375 | 1100 | 1250 | 1000 | 4012-46TWG2A | 4800*2100*2297 |
| KC-P1500 | 1500 | 1200 | 1375 | 1100 | 4012-46TWG3A | 4800*2100*2297 |
| KC-P1650 | 1650 | 1320 | 1500 | 1200 | 4012-46TAG2A | 4900*2100*2297 |
| KC-P1850 | 1850 | 1480 | 1688 | 1350 | 4012-46TAG3A | 4900*2100*2297 |
| KC-P2000 | 2000 | 1600 | 1850 | 1480 | 4016TAG1A | 5035*2597*2150 |
| KC-P2200A | 2200 | 1760 | 2000 | 1600 | 4016TAG2A | 5035*2597*2150 |
| KC-P2200B | 2200 | 1760 | 2000 | 1600 | 4016-61TRG2 | 5250*2600*2150 |
| KC-P2500 | 2500 | 2000 | 2250 | 1800 | 4016-61TRG3 | 5250*2600*2150 |
| 60HZ | ||||||
| Genset Model | Standby Power | Prime Power | Engine Model | Dimension(MM)L*W*H | ||
| KVA | KW | KVA | KW | |||
| KC-P13 | 13 | 10 | 11 | 9 | 403D-11G | 1350*500*1090 |
| KC-P16 | 16 | 13 | 15 | 12 | 403D-15G | 1435*500*1150 |
| KC-P19 | 19 | 15 | 17 | 14 | 403A-15G2 | 1435*500*1150 |
| KC-P26 | 26 | 21 | 24 | 19 | 404D-22G | 1610*560*1195 |
| KC-P35 | 35 | 29 | 33 | 26 | 404D-22TG | 1610*560*1195 |
| KC-P38 | 38 | 30 | 35 | 28 | 1103A-33G | 1840*700*1270 |
| KC-P59 | 59 | 47 | 54 | 43 | 1103A-33TG1 | 1960*700*1350 |
| KC-P75 | 75 | 60 | 68 | 55 | 1103A-33TG2 | 2050*700*1350 |
| KC-P84 | 84 | 67 | 76 | 61 | 1104A-44TG1 | 2200*700*1350 |
| KC-P100A | 100 | 80 | 90 | 73 | 1104A-44TG2 | 2200*700*1350 |
| KC-P100B | 100 | 80 | 90 | 72 | 1104C-44TAG1 | 2280*700*1350 |
| KC-P125 | 125 | 100 | 115 | 92 | 1104C-44TAG2 | 2280*700*1350 |
| KC-P169 | 169 | 135 | 152 | 122 | 1106A-70TG1 | 2565*850*1425 |
| KC-P188 | 188 | 150 | 169 | 135 | 1106A-70TAG2 | 2750*850*1350 |
| KC-P219 | 219 | 175 | 197 | 158 | 1106A-70TAG3 | 2850*850*1350 |
| KC-P273 | 273 | 218 | 248 | 198 | 1506A-E88TAG2 | 2980*1055*1695 |
| KC-P320 | 320 | 256 | 290 | 232 | 1506A-E88TAG3 | 2980*1055*1695 |
| KC-P390 | 390 | 312 | 352 | 282 | 1506A-E88TAG5 | 3080*1090*1700 |
| KC-P438A | 438 | 350 | 400 | 320 | 2206C-E13TAG2 | 3460*1150*2030 |
| KC-P438B | 438 | 350 | 400 | 320 | 2206C-E13TAG3 | 3460*1150*2030 |
| KC-P563A | 563 | 450 | 500 | 400 | 2506C-E15TAG1 | 3780*1270*2020 |
| KC-P563B | 563 | 450 | 500 | 400 | 2506C-E 15TAG2 | 3780*1270*2020 |
| KC-P687 | 687 | 550 | 625 | 500 | 2806C-E 18TAG 1A | 3780*1536*2180 |
| KC-P825 | 825 | 660 | 750 | 600 | 4006-23TAG2A | 4250*1690*2150 |
| KC-P940 | 940 | 750 | 849 | 679 | 4006-23TAG3A | 4250*1690*2150 |
| KC-P1100 | 1100 | 880 | 1000 | 800 | 4008TAG2 | 4735*2261*2256 |
| KC-P1375 | 1375 | 1100 | 1250 | 1000 | 4012-46TWG2A | 4800*2100*2297 |
| KC-P1500 | 1500 | 1200 | 1375 | 1100 | 4012-46TWG3A | 4800*2100*2297 |
| KC-P1650 | 1650 | 1320 | 1500 | 1200 | 4012-46TAG2A | 4900*2100*2297 |
| KC-P1850 | 1850 | 1480 | 1690 | 1350 | 4012-46TAG3A | 4900*2100*2297 |
Are you trading company or manufacturer ?
We are factory.
What is your power range of your diesel generator?
We can provide power from 8KVA-4000KVA and comprehensive power solutions for you
How long is your delivery time?
4-6 weeks.
What's your MOQ?
1 set.
What is your terms of payment ?
T/T 30% in advance and TT 70% balance paid before shipment.
What is your warranty period?
Our warranty period is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.
Do you offer OEM service?
Yes.
How could I trust you?
Diesel Service & Supply stands behind the quality of all the generators and industrial power equipment we sell. If you are not convinced by the pictures, videos, check-in reports, load tests, customer experiences and sales associates’ knowledge about the generator you are interested in, then we invite you to come visit our expansive yard and shop facility to witness a load test and see the professional operation we have going on here.
After i receive the genset what should i do ?
After you got the generator, please read the operation manual carefully.
